Power Steering Pulleys

Power Steering Pulleys




CHEVY POWER STEERING PULLEYS

 Pulley
 Mfg. OEM Part
      Shaft Size          Dim. A
Key Way
1st Groove  Dim. B
2nd Groove Dim. C
  O.D. Size      Dim. D
1st Groove Dim. E
2nd Groove Dim. F
38860457
5/8
Yes
0.913
-
5 3/4
-.163
-
346289AK
3/4
No
1.15
-
5 3/4
-
-
2477954
5/8
Yes
1.36
-
5 3/4
-.550
-
3770509CE
5/8
Yes
1.05
-
5 3/4
-.300
-
140231761
3/4
No
1.95
-
6
-
-
-
5/8
Yes
0.42
-
5 3/4
+.330
-
354325AC
3/4
No
1.55
2.175
5 3/4
-
-
3941107DE
5/8
Yes
1.07
1.69
5 3/4
-.320
-.940
Single groove pulley same as 521 without groove B
14023173DB
3/4
No
1.35
1.96
6
-
-
-
5/8
Yes
.57
-
6 3/4
+.180
-
14023172DA
3/4
No
1.25
-
6
-
-
3925537DC
5/8
Yes
0.812
-
-
-.000
-
14102096NL
3/4
No
Serpentine
-
6 3/8
-
-

17mm
No
Serpentine

5 1/2


FORD POWER STEERING PULLEYS

Pulley
Notes :
Power-Steering Style
Shaft Size      Dim. A
Key Way
1st Groove     Dim. B
2nd Groove Dim. C
O.D. Size     Dim.
 Ford Saginaw Press fit (Pear Shape)
3/4
No
1.33
-
6
 Ford Corporate (1971-1976)
11/16
No
1.336
-
5 1/2
-
 Fits Ford Big Block 351-429-460
-
-
-
-
-
 Ford Corporate (1971-1976)
11/16
No
0.87
-
5
-
 Fits Ford Small Block 289-302
-
-
-
-
-

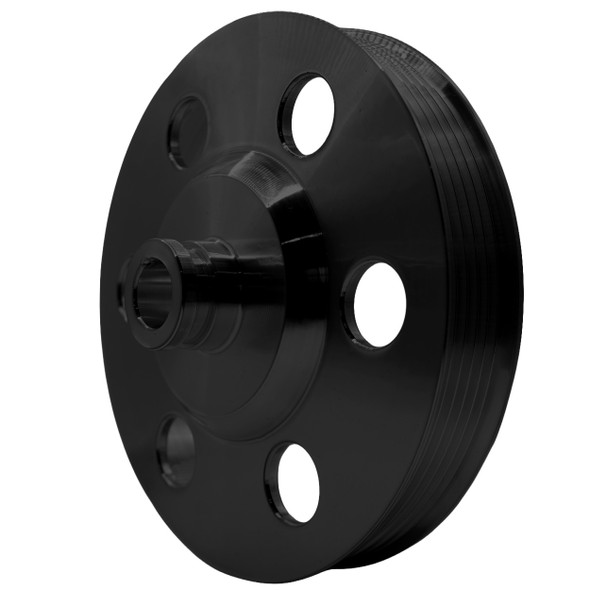

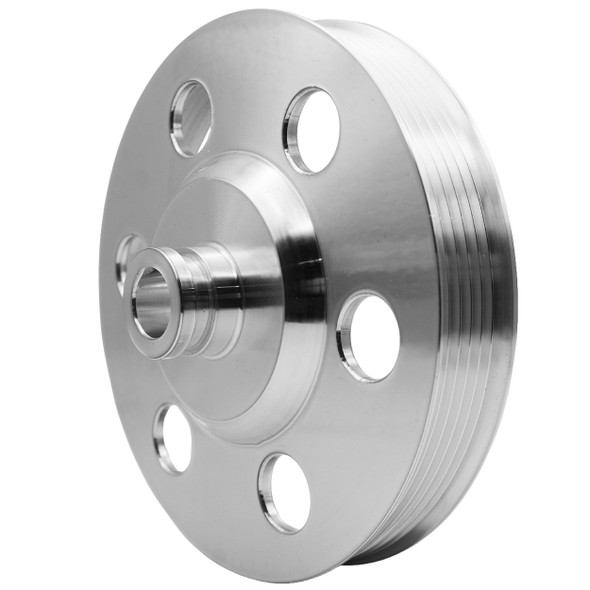

 Ford 5.0L Mustang
11/16
No
Serpentine
-
5 1/2
-
 1979-1993 Serpentine
-
-
-
-
-

CHRYSLER POWER STEERING PULLEYS

 Pulley
Mfg. OEM Part
Notes :
Power-Steering Style
Shaft Size    Dim. A
Key Way
1st Groove     Dim. B
2nd Groove Dim.
O.D. Size     Dim.
82668 1189
 Saginaw Keyway
5/8
Yes
0.57
-
6 3/4
-
-
 Fits 69 Roadrunner-Challenger-70 Cuda 440ci
-
-
-
-
-
-
 Saginaw Press Fit
3/4
No
1.25
-
6
82668 2608
 Federal Press Fit
5/8
No
0.45
-
7
-
 1991-1997 Dodge Magnum Engine 3.9, 5.2, & 5.9  7-Rib Pulley matches kit 10510
-
 1991-1997 Dodge Magnum Engine 3.9, 5.2, & 5.9  6-Rib Pulley matches kit 10515
