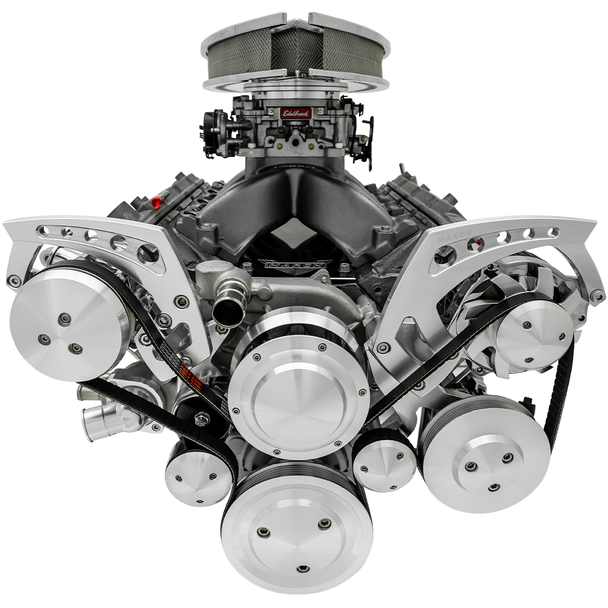

Chevy LS All Inclusive Revolver Serpentine System w/ AC

AC Applications | 6 Rib Serpentine

The Revolver Serpentine System for Chevy LS engines with A/C delivers a precise, high-strength serpentine drive solution for LS1, LS2, LS3, and LS7 applications. Designed with idlers for maximum belt wrap and stable, no-slip performance, this system uses CNC-machined 6061-T6 aluminum components and hard-coated wear surfaces for long-term durability. An spring loaded tensioner maintains accurate belt control, while modular bracket options allow you to run the kit with or without power steering. This setup provides a clean, modern upgrade for any Chevy LS A/C serpentine configuration.

Application:

Chevy LS1, LS2, LS3, & LS7 Engines

Requires additional Balancer Hub Adapter for mounting crank pulley

Kit Includes:

• Aluminum Water Pump
• 140 AMP CS130 Alternator; Chrome
• Alternator Pulley and Cover
• Alternator Fan
• Peanut Style AC Compressor, Chrome
• A/C Compressor Cover
• Water Pump Pulley and Cover
• Alternator Bracket
• A/C Bracket
• Spring Loaded Tensioner
• Crank pulley
• All mounting hardware
• GM Type II Remote Power Steering Pump, chrome (Remote Reservoir sold separately)
• Power Steering Pulley and Cover
• Idlers

Notes:

• Power steering applications require modification when using a cast iron truck blocks
• Not Compatible with Variable Valve Timing (VVT)

Instructions:

20060/20065/20070/20075
