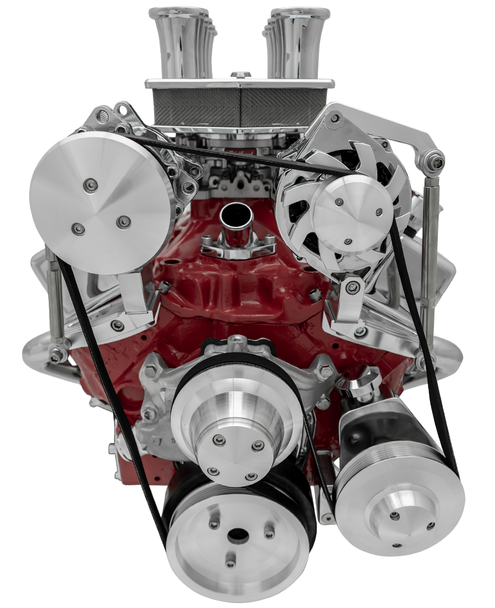

Small Block Chevy : Inward Mount Ultra : Reverse Rotation Serpentine System

Introducing the March Performance Chevy Small Block Short Water Pump Inward Mount Ultra Serpentine Pulley and Bracket Kit.

These bracket kits come complete with stainless steel tensioning rods and chrome moly rod ends for high performance operation. All necessary hardware included. Powdercoated to eliminate polishing in those hard to reach places. Matching serpentine pulleys are precision CNC machined from 6061-T6 aluminum. These pulleys will not fracture like common cast pulleys. High tensile strength means much longer wear. We go as far as hard coating the high wear areas on our high water flow ratio pulleys! All pulleys have a maintenance-free powdercoat finish.

Application :

Chevy Small Block

5.8125" 1984-1991 Corvette Small Block Reverse Rotation Short Water Pump

* Requires 13" above Center of Water Pump

** Requires Hole in Passenger Side Head

*** Will Work with Vortec Heads

**** If Using ZZ4 Style Timing Cover, Modification of Short Water Pump Required for Clearance

Kit Includes:
    •    Alternator Bracket, pulley with fan and nose cover for GM 10SI Alternator
    •    Belt Tensioning Tool
    •    Water Pump Pulley for Chevy Small Block Standard or Reverse Rotation Short Water Pump
    •    Crank Pulley
    •    Mounting Hardware

Kits with Air Conditioning Include:

    •    Air Conditioning Bracket and nose cover for Sanden 505 or 508 A/C Compressor

Kits with Power Steering Include:
    •    Power-Steering Bracket for 1966-1974 Saginaw Keyway, 1975-1978 Saginaw Press Fit, or GM Type 2 Remote Reservoir (remote reservoir required) Power-Steering Pumps
    •    Power-Steering Pulley

Instructions:

20720

20721

20722

20733
