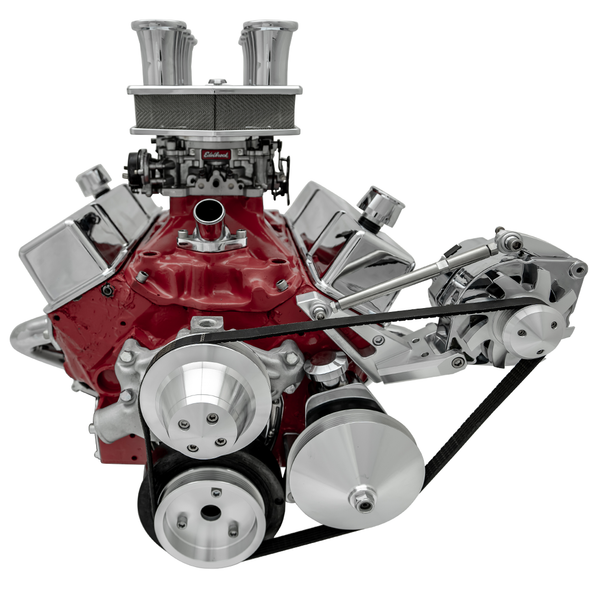

Small Block Chevy - Outward Mount Deluxe -

Short Water Pump Serpentine System (Reverse Rotation)

If you want to improve the performance of your Chevy small block, consider this short water pump outward mount deluxe serpentine pulley and bracket kit from March Performance.

• Kits include stainless steel tensioning rods and chrome moly rods to ensure high performance.
• High tensile strength also contributes to the durability of this pulley and bracket kit.
• Diagrams help for cylinder head bolt hole pattern measurement.

March Performance has perfected the Serpentine Pulley and Bracket kit for Chevy small blocks, and this short water pump outward mount deluxe is no exception. With easy installation and durability in mind, this kit includes alternator brackets and pulleys with fan and nose covers, belt tensioning tools, water pump pulleys, crank pulleys, and all mounting hardware.

It is hard to find an easier-to-use short water pump installation kit for your Chevy small block, as this one from March Performance comes with a maintenance-free powder coat finish.

Application:

• Chevy Small Block
• 5.8125" 1984-1991 Corvette Small Block Reverse Rotation Short Water Pump (for A/C applications)
• GM A body, 1970 and newer F body, and G body vehicles require remote reservoir power steering to clear gearbox
• Works with Vortec heads
• Select kits require holes in passenger side head
• Does not fit 62-67 Novas with factory shock towers

Kit includes:

• Alternator bracket, pulley with fan and nose cover for GM 10si alternator
• Belt tensioning tool
• Water pump pulley for Chevy small block Standard or Reverse rotation short water pump
• Crank pulley
• All mounting hardware

A/C Kits Include:

• Air conditioning bracket and nose cover for a Sanden 505 or 508 a/c compressor

Power Steering Kits Include:

• Power steering bracket for 1966-1974 Saginaw keyway, 1966-1974 Saginaw keyway, 1975-1978 Saginaw press fit, or GM type 2 remote reservoir (remote reservoir required) power steering pumps
• Power steering pulley

A = 3 9/32" kits for engines with L98 & ZZ4 aluminum heads

A = 4 3/16" kits for engines with 1969 & later cast iron/aluminum heads

Instructions:

20405

20420
