Description

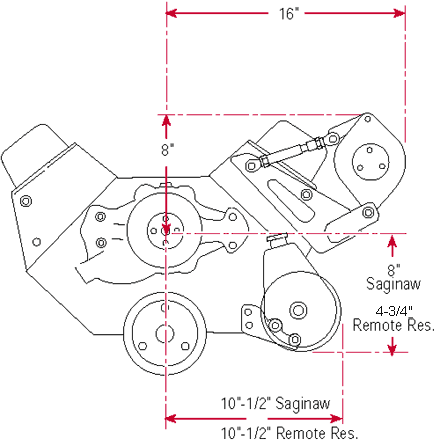

Small Block Chevy - Outward Mount Deluxe -
Short Water Pump Serpentine System (Standard Rotation)
Application:
- Chevy Small Block
- 5.625" Standard Rotation Short Water Pump
- GM A body, 1970 and newer F body, and G body vehicles require remote reservoir power steering to clear gearbox
- Works with Vortec heads
- Select kits require holes in passenger side head
- Does not fit 62-67 Novas with factory shock towers
Kit includes:
- Power Steering Bracket
- Power Steering Pulley
- Alternator Bracket for 10si Alternator
- Alternator Fan
- Alternator Pulley and Cover
- Water pump Pulley
- Crankshaft pulley
- All Mounting Hardware
Customer Images
Installation Instructions
Technical Details and Installation Instructions
20405 Instructions20420 Instructions
1 Wire Alternator Instructions
Power Steering Bleeding & Remote Reservoir Instructions
Additional Information
Product Type: |
Serpentine - Conversion |
Alternator Position: |
High - Driver |
Mounting Position: |
Wide-Mount |
Power Steering: |
Yes |
Air Conditioning: |
None |
Belt Type: |
Serpentine 6 Rib |
Water Pump Type: |
Mechanical |
Water Pump: |
Short |
Water Pump Rotation: |
Standard |
Make: |
Chevy |
Engine: |
350 Small Block |
Finish: |
Clear Powder Coat |
